Specifications
| General Specifications | |||
|---|---|---|---|
|
Lamp Color Code |
Warm White |
Driver Included |
Yes |
|
Optical cover/lens type |
Transparent bowl with transparent cover |
Control interface |
- |
|
Connection |
Screw connection block 3-pole |
Cable |
Cable 0.5 m without plug |
|
Protection class IEC |
Safety class I |
Flammability mark |
For mounting on normally flammable surfaces |
|
CE Mark |
CE Mark |
||
| Operating and Electrical | |||
|---|---|---|---|
|
Input Voltage |
220-240 V |
Input frequency |
50 or 60 Hz |
|
Inrush current |
15 A |
Power factor (min.) |
0.9 |
| Controls and Dimming | |||
|---|---|---|---|
|
Dimming |
No |
||
| Mechanical and Housing | |||
|---|---|---|---|
|
Housing Material |
Aluminium |
Optical cover/lens material |
Polycarbonate |
|
Overall length |
383 mm |
Overall width |
249 mm |
|
Overall height |
85 mm |
Effective projected area |
0.08 m² |
|
Color |
Grey |
||
| Approval and Application | |||
|---|---|---|---|
|
Ingress protection code |
IP66 [ Dust penetration-protected, jet-proof] |
Mech. impact protection code |
IK08 [ 5 J vandal-protected] |
| Initial performance (IEC compliant) | |||
|---|---|---|---|
|
Initial luminous flux (system flux) |
8800 lm |
Luminous flux tolerance |
+/-10% |
|
Initial LED luminaire efficacy |
125 lm/W |
Lamp colour temperature |
3000 K |
|
Colour Rendering Index |
>70 |
Initial chromaticity |
7 |
|
Initial input power |
70 W |
Power consumption tolerance |
+/-10% |
| Application Conditions | |||
|---|---|---|---|
|
Ambient temperature range |
-40 to +50 °C |
|
|
| Product Data | |||
|---|---|---|---|
|
Full product code |
871951454887900 |
Order product name |

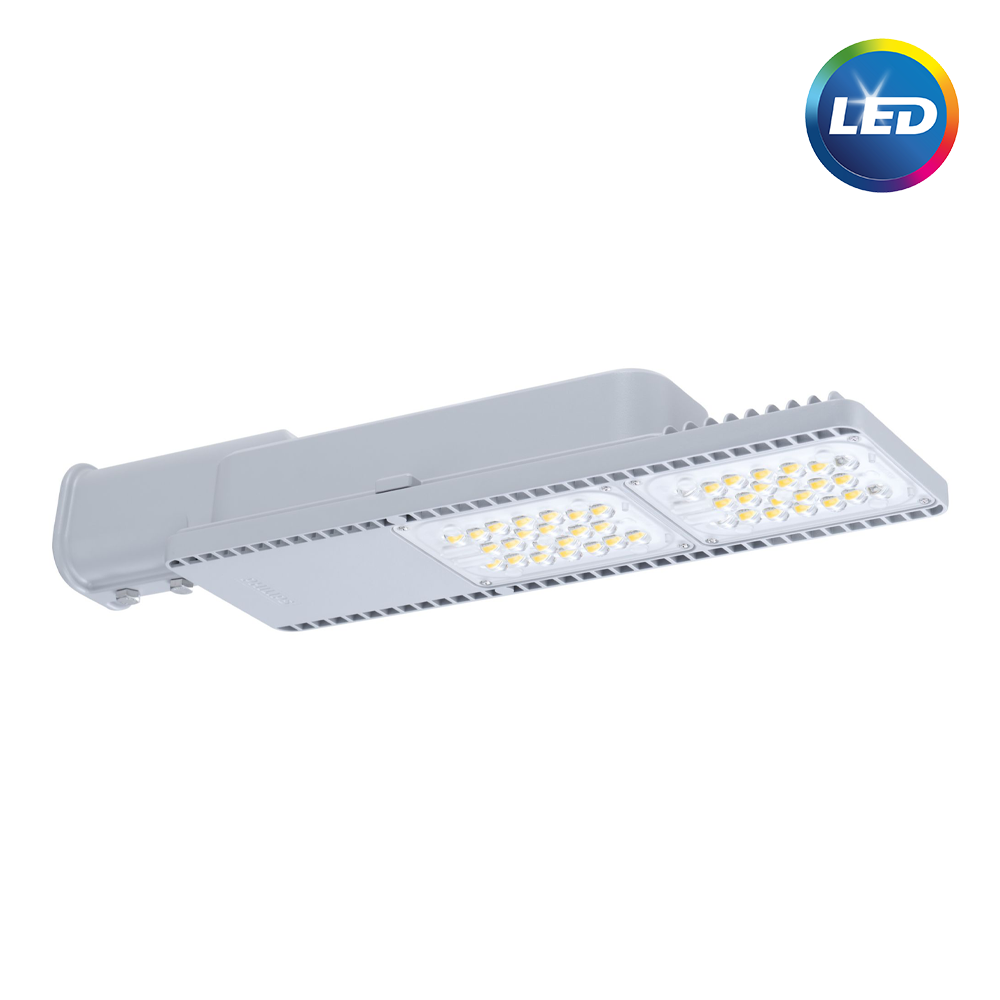

BRP130 LED88/WW 70W 220-240V DM GM |
|
EAN/UPC – product |
8719514548879 |
Order code |
911401675907 |
|
SAP numerator – quantity per pack |
1 |
Numerator – packs per outer box |
1 |
|
SAP material |
911401675907 |
Net Weight (Piece) |
2.590 kg |
