Specifications
| General Specifications | |||
|---|---|---|---|
|
Number of gear units |
— |
Gear |
— |
|
Driver included |
Yes |
Light source engine type |
LED |
|
Value ladder |
Value |
Warranty period |
1 years |
| Light Technical | |||
|---|---|---|---|
|
Light source color |
840 neutral white |
Luminous Flux |
150 lm |
|
Correlated Color Temperature |
6500 K |
Luminous Efficacy (rated) (Nom) |
135 lm/W |
|
Color rendering index (CRI) |
80 |
Number of light sources |
1 |
|
Beam angle of light source |
– degree(s) |
Optic type |
– |
|
Luminaire light beam spread |
– |
||
| Operating and Electrical | |||
|---|---|---|---|
|
Input Voltage |
220 to 240 V |
Line frequency |
50 or 60 Hz |
|
Inrush current |
5.67 A |
Inrush time |
0.1 ms |
|
Power Consumption |
0.8 W |
Power Factor (Fraction) |
0.35 |
|
Connection |
Push-in connector 2-pole |
Cable |
— |
|
Number of products on MCB of |
240 |
Suitable for random switching |
No |
|
Protection class IEC |
— |
||
| Mechanical and Housing | |||
|---|---|---|---|
|
Housing Material |
Plastic |
Optical cover material |
Polycarbonate |
|
Reflector material |
– |
Optical cover finish |
Clear |
|
Overall length |
275 mm |
Overall width |
269 mm |
|
Overall height |
61 mm |
Dimensions (Height x Width x |
61 x 269 x 275 mm |
|
Ingress protection code |
IP20 [Finger-protected] |
Optic material |
— |
|
Housing Color |
Grey |
Mounting device |
— |
|
Mech. impact protection code |
IK03 [0.3 J] |
Optical cover type |
Polycarbonate bowl/cover |
|
Net Weight (Piece) |
0.840 kg |
||
| Approval and Application | |||
|---|---|---|---|
|
Glow-wire test |
Temperature 650 °C, duration 30 s |
Flammability mark |
— |
|
CE mark |
Yes |
ENEC mark |
— |
|
EU RoHS compliant |
No |
Performance ambient |
25 °C |
|
Ambient temperature range |
0 to +45 °C |
||
| Initial performance (IEC compliant) | |||
|---|---|---|---|
|
Luminous flux tolerance |
+/-10% |
Initial chromaticity |
≤5 |
|
Power consumption tolerance |
+/-10% |
||
| Application Conditions | |||
|---|---|---|---|
|
Ambient temperature range |
-10 to +35 °C |
Maximum dimming level |
Not applicable |
|
Suitable for random switching |
No |
||
| Product Data | |||
|---|---|---|---|
|
Full product code |
872110370105399 |
Order product name |

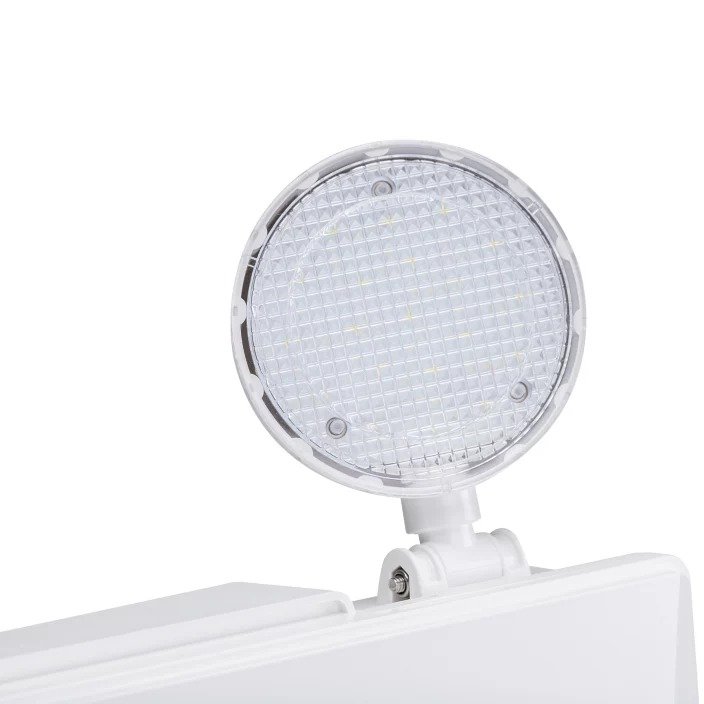

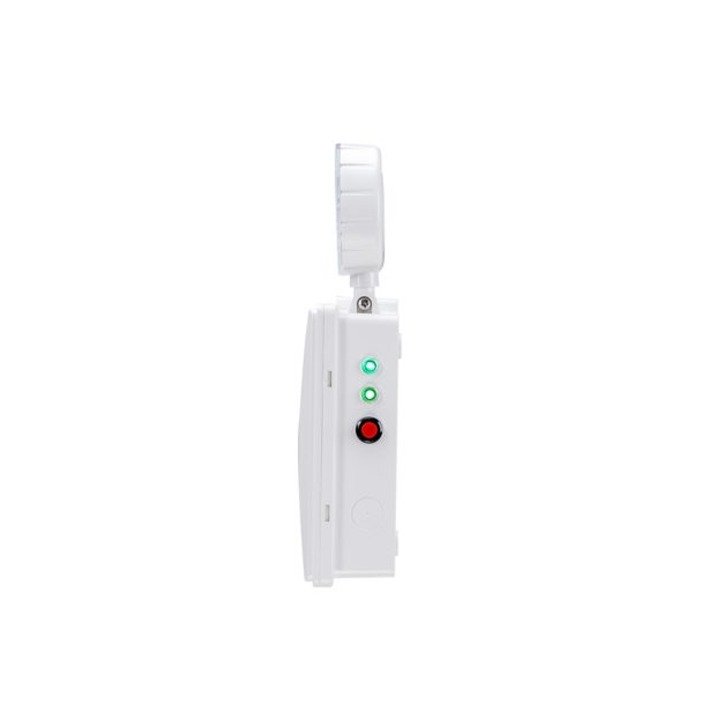

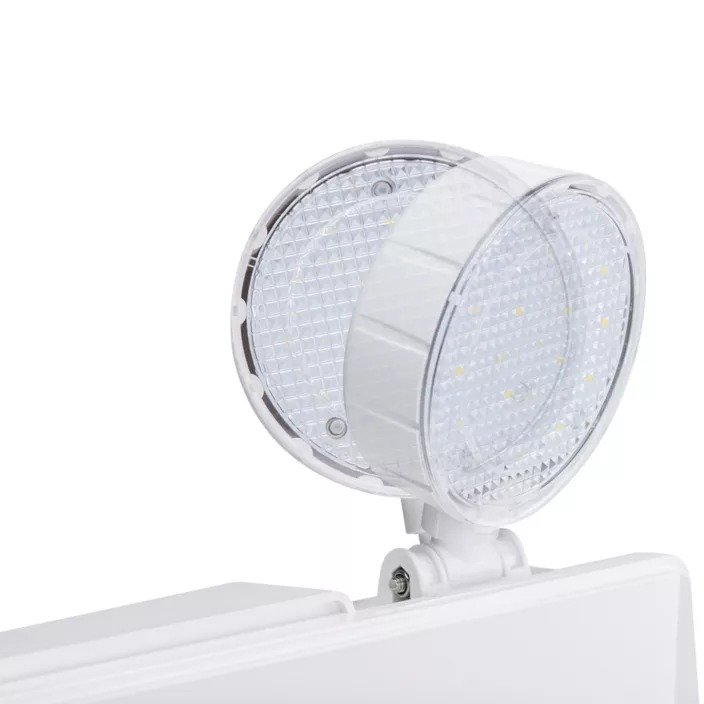

EM120C Emergency Twin-head |
|
EAN/UPC – Product/Case |
8721103701053 |
Order code |
911401525843 |
|
Numerator – Packs per outer box |
10 |
Numerator – Quantity Per Pack |
1 |
|
Material Nr. (12NC) |
911401525843 |
EAN/UPC – Case |
8721103701060 |
