Product Data
| General Information | |||
|---|---|---|---|
|
Gear |
EB [Electronic] |
Driver Included |
Yes |
|
Value ladder |
Value |
Light source engine type |
LED |
|
Cable |
Cable without plug 3-pole |
Protection class IEC |
Safety class I |
|
Connection |
Flying leads/wires |
Power Factor (Fraction) |
0.95 |
| Light Technical | |||
|---|---|---|---|
|
Luminous Flux |
7,000 lm |
Correlated Color Temperature (Nom) |
4000 K |
|
Luminous Efficacy (rated) (Nom) |
140 lm/W |
Color rendering index (CRI) |
≥70 |
|
Light source color |
740 neutral white |
Effective projected area |
0.059 m² |
| Controls and Dimming | |||
|---|---|---|---|
|
Dimmable |
Fixed |
Control interface |
– |
|
Maximum dim level |
Not applicable |
||
| Mechanical and Housing | |||
|---|---|---|---|
|
Housing Material |
Aluminium die-cast |
Reflector material |
Polycarbonate
|
|
Optic material |
Polycarbonate |
Optical cover material |
Glass
|
|
Mounting device |
Side-entry for diameter 48 to 60 mm
|
Optical cover finish |
Clear |
|
Overall length |
503 mm
|
Overall width |
135 mm |
|
Overall height |
81 mm |

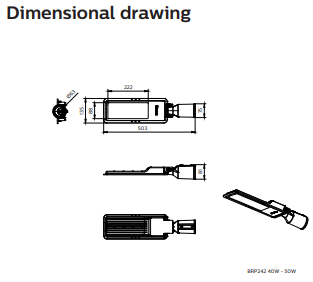

Dimensions (Height x Width x Depth) |
81 x 135 x 503 mm |
|
Housing Color |
RAL7040 |
Ingress protection code |
IP66 [Dust penetration-protected, jet-proof] |
|
Mech. impact protection code |
IK08 [6 J] |
Optical cover type |
Tempered glass |
|
Net Weight (Piece) |
1.650 kg
|
||
| Operating and Electrical | |||
|---|---|---|---|
|
Input Voltage |
220-240 V |
Line frequency |
50 or 60 Hz |
|
Inrush current |
35 A |
Power Consumption |
50 W |
| Approval and Application | |||
|---|---|---|---|
|
Flammability mark |
– |
CE mark |
Yes |
|
Ambient temperature range |
-40 to +50 °C |
ENEC mark |
– |
|
EU RoHS compliant |
Yes |
Performance ambient temperature Tq |
35 °C |
| Initial performance (IEC compliant) | |||
|---|---|---|---|
|
Luminous flux tolerance |
+/-10% |
Initial chromaticity |
(0.38,0.38) SDCM<5 |
|
Power consumption tolerance |
+/-10% |
||
| Product Data | |||
|---|---|---|---|
|
Full product code |
872110330421600 |
Order product name |
BRP242 LED70/NW 50W DM0 PSU
|
|
EAN/UPC – product/case |
8721103304216
|
Order code |
911401868887
|
|
Full product name |
BRP242 LED70/NW 50W DM0 PSU |
Numerator – Quantity Per Pack |
1 |
|
Numerator – Packs per outer box |
1 |
EAN/UPC – Case |
8721103304216 |
|
Material Nr. (12NC) |
911401868887 |
||
